IPC Edge AI Board Based on Hi3516CV610 for Smart Vision Applications

Advanced Features & Vision AI Capabilities of Hi3516CV610 Edge AI IPC Board – Ideal for Smart Surveillance & IoT

Our Hi3516CV610 Edge AI IPC Board delivers high‑performance vision processing for smart cameras, combining custom hardware with real‑time analytics & seamless integration for surveillance, industrial & security systems.

1. High‑Performance Hardware Interfaces

This board integrates all the interfaces you need for modern embedded systems:

• TF Card & USB 2.0 for effortless storage expansion and peripheral connectivity
• Gigabit Ethernet (IEEE 802.3ab) enabling GB28181‑compliant video streaming and low‑latency data transport
• GPIO Pins for precise hardware control (alarm triggers, relay activation, sensor inputs)

Industrial‑grade anti‑misinsert designs—such as reversed‑insertion‑proof TF card slots and standardized 2.5 mm × 5.5 mm DC jacks—ensure rock‑solid reliability in harsh environments.

2. Ultra‑HD Vision Processing

Powered by HiSilicon’s flagship Hi3516CV610 SoC, our PCBs deliver exceptional image and video processing:

• Canny Edge Detection accelerated in hardware (3.2 ms/frame vs. 15 ms in software)
• AI‑ISP Super‑Resolution Engine with up to 120 dB dynamic range, advanced noise suppression, and color fidelity improvements
• SVAC3.0 & H.265 Dual‑Encoding for encrypted, standards‑compliant video streams in smart city and government projects

AI‑ISP Super‑Resolution Before & After

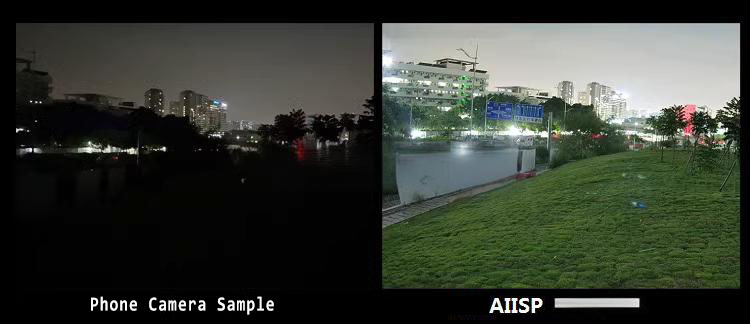

▲ Street scene: Mobile phone capture vs. AI‑ISP enhancement

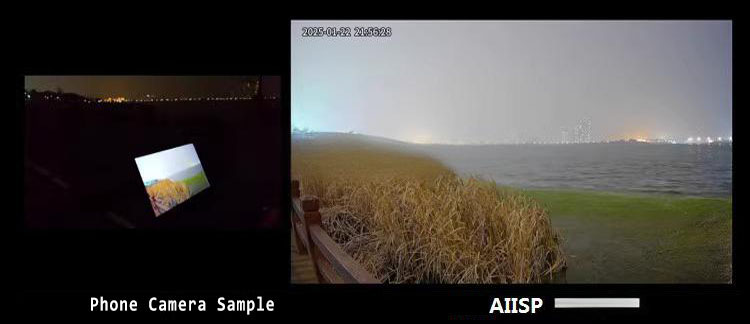

▲ Park scene: Mobile phone capture vs. AI‑ISP enhancement

3. Heterogeneous Compute & AI Acceleration on the Hi3516CV610 Edge AI IPC Board

Our boards leverage a multi‑core Cortex‑A7 + 1 TOPS NPU + IVE2.5 accelerator architecture:

• Run YOLOv8, Transformer‑based models, or custom networks at the edge
• Quantize and prune models via the CANN/AMCT toolchain for INT8 inference
• Scale AI workloads with parallel pipelines and memory reuse optimizations

Transformer offload and model compression support empower large‑scale AI deployments without cloud dependency.

4. Rich Application Scenarios

From smart retail to industrial automation, our solution adapts to diverse use cases:

Smart Security & ANPR

▲ Dual‑stream vehicle & license‑plate recognition with sub‑200 ms latency

High‑Density Footfall Analysis

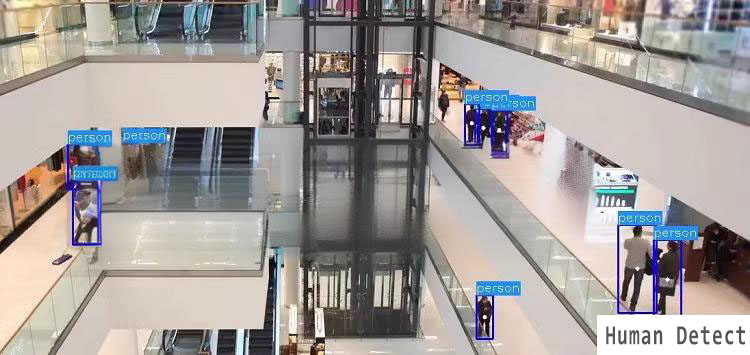

▲ Head‑&‑shoulder detection for retail and public venues with 98 % accuracy

Pet & Home Monitoring

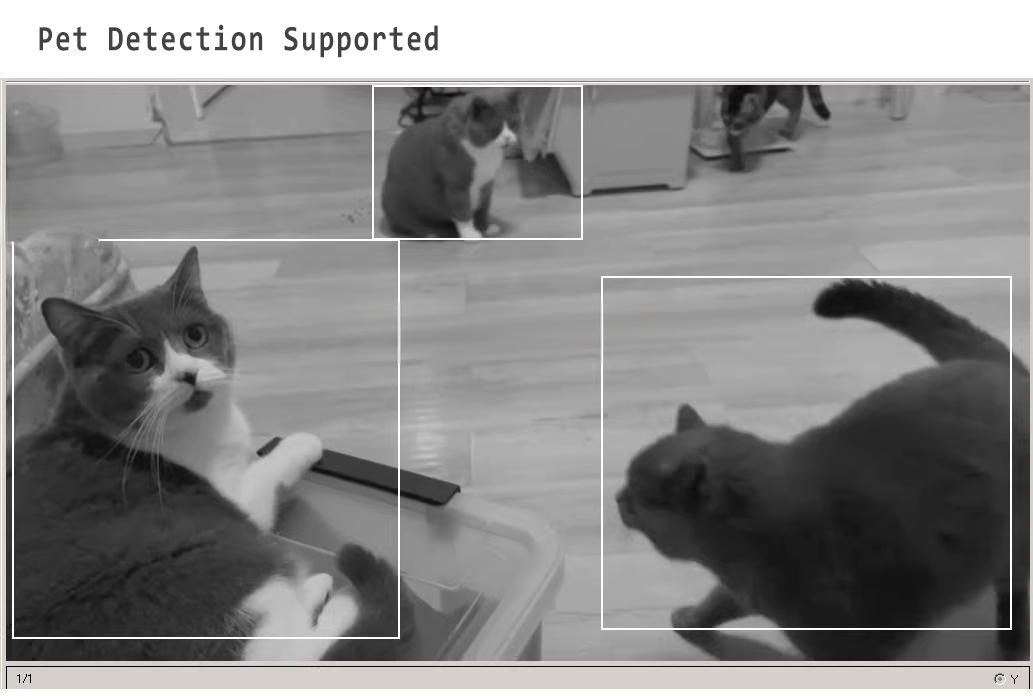

▲ Multi‑target pet tracking and behavior alerts seamlessly integrated with Home Assistant

P2P Remote Surveillance

• Zero‑configuration TUTK P2P streaming over 4G/5G, saving cloud bandwidth
• Ready‑to‑use code examples, deployment scripts, and performance‑tuned presets

5. Comprehensive Development Support

We back your project with everything you need:

1. Detailed Documentation & Whitepapers: From protocol stacks (ONVIF, GB28181) to algorithm tuning guides
2. End‑to‑End Toolchain: MindStudio IDE, AMCT quantizer, ATC converter, PQTool for image tuning
3. Dedicated Technical Services: 7×12‑hour response, remote environment setup, and onsite consulting
4. Rich Resource Library: Sample code, prebuilt sensor drivers (GC4653, SC850SL), and model zoos

Ready to Build Your Custom PCB?

Partner with Gorzim for agile, high‑performance PCB design and development.
