Oven Control Board

The oven control board is divided into built-in oven control board, mini oven control board, rotary oven control board, etc.. It offers features such as a clock, alarm, scheduled cooking, smart child lock, and oven light. Gorzim also supports OEM and custom services, ensuring flexibility for different needs.

Add to quote
X
  • No products in the list

The oven control board is divided into built-in oven control board, mini oven control board, rotary oven control board, etc.. It offers features such as a clock, alarm, scheduled cooking, smart child lock, and oven light. Gorzim also supports OEM and custom services, ensuring flexibility for different needs.

Key Features of the Oven Control Board:

  • User-friendly Intelligent Application: You can adjust time and temperature quickly, control the oven panel, plan cooking, monitor cooking progress, and even customize your own menu. This makes the oven intuitive and convenient to use.

  • Pre-set Menus: With 12 online menus, the oven can guide you through preparing delicious meals. Even if you’re unsure how to cook something, the preset menus will help by suggesting ingredients. You can also modify the menus to suit your preferences.

  • LED Display: The display shows various functions such as lower and upper heating elements, rotation, fan, oven light, and temperature settings. Users can choose different cooking modes according to their needs and see the corresponding icons on the display. Independent temperature control for the upper and lower heating elements makes cooking smarter and more precise.

  • Fault Detection: If the oven detects a connection issue with the temperature sensor, it sends an error message. If the temperature doesn’t rise significantly within two minutes, the oven displays an E5 error.

  • Power-saving Mode: The power consumption is extremely low in standby mode. This energy-saving feature helps reduce electricity usage.

  • AI-Adjusted Oven Light: During the day, the oven operates in energy-saving mode, turning off the light after 30 seconds. At night, the regular light mode is activated, allowing clear observation of your food. The AI-powered light enhances the baking experience.

  • Pre-set Function: Users can set the temperature to start the preheating mode directly and stop immediately after the temperature reaches, then Start baking. Alternatively, users can skip preheating and bake directly.

  • Precise Temperature Control: The oven timer is highly accurate. It allow temperature control within a margin of ±5℃.

  • Glass Panel: The panel is made of toughened glass, which is not only easy to clean but also attractive, durable, and offers excellent heat insulation. Its full-touch controls, highly sensitivity and modern fashion.

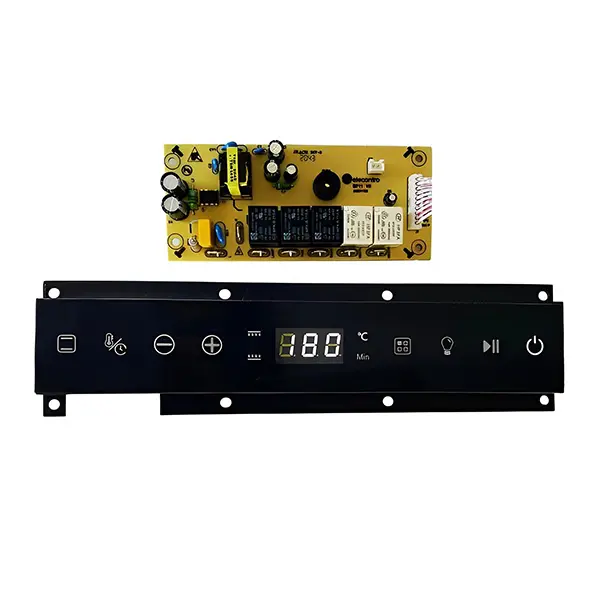

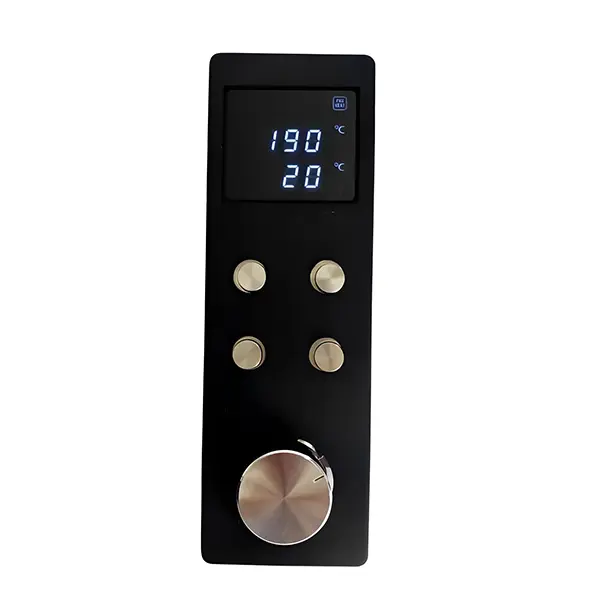

Oven Control Board

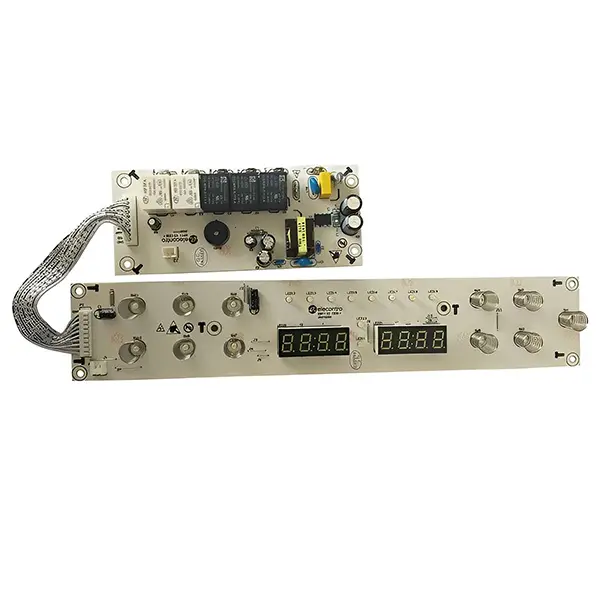

Oven Control Board

Oven Control Board Parameters

Input Feature

Input voltage range

AC 85~265V



Frequency

50HZ/60HZ



Efficiency

80%

Output Feature

Maximum output power

MAX 4.5KW



Ripple

≤40m Vp-p



Standby Power

≤1W

Protection Feature

Overpower Protection

150-170% rated power, power will be restored after fault is removed



Topological structure

Isolation



Output short circuit protection

DC output in short circuit, eliminating short circuit and power will recover

Environmental Parameter

Working Temperature

-20℃∽+85℃

Safe And EMC Standard

Safe standard

MEET- GB4943



Withstand voltage

CE 1500V/5Ma/3sec



Insulation resistance

I/P-O/P 500VDC/100MΩ hms

At Gorzim, we provide advanced oven control boards that are designed to enhance functionality and user experience. Our boards feature intelligent applications, precise controls, and energy-saving technology. Whether you need custom designs or OEM solutions, Gorzim’s expertise ensures that every product meets your needs with superior quality and innovation. Trust Gorzim for reliable, high-performance solutions tailored to your specific requirements.
