Summary

The Real-Time ISP (Image Signal Processor) Parameter Tuning System empowers engineers to dynamically adjust imaging parameters on a live video feed, drastically improving image quality without interrupting the preview. Leveraging low-latency transport, hardware-accelerated pipelines, and a synchronized dual-view comparison interface, this solution is ideal for applications such as surveillance, industrial inspection, and autonomous systems.

1. Introduction

Modern imaging applications demand flexibility to fine-tune brightness, contrast, sharpness, and noise reduction in real time. Traditional offline adjustment workflows are time-consuming and hinder rapid prototyping. Our system integrates a PC control dashboard with an embedded Hi3516 development board and a camera sensor, forming a closed-loop pipeline for on-the-fly ISP optimization.

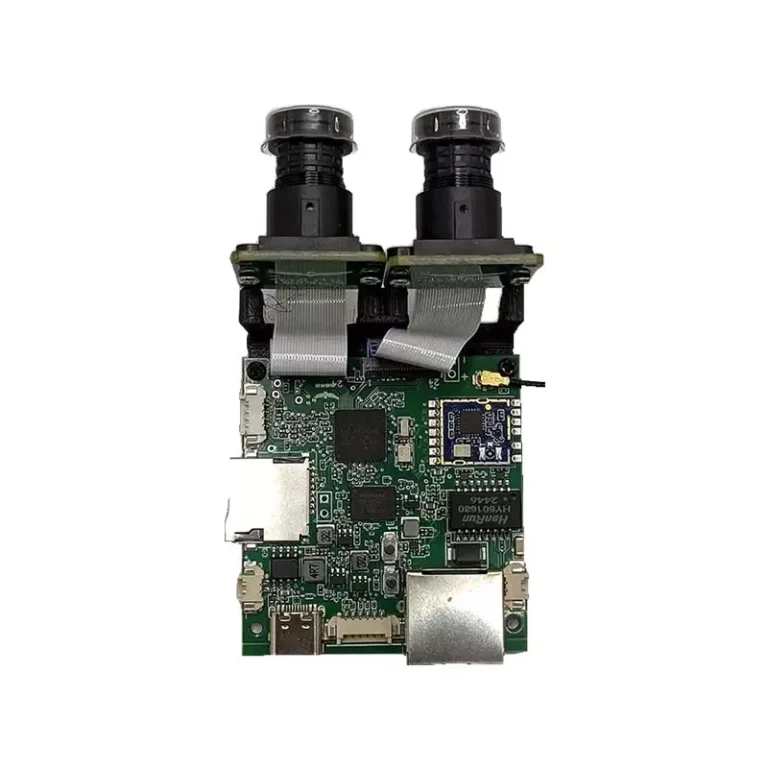

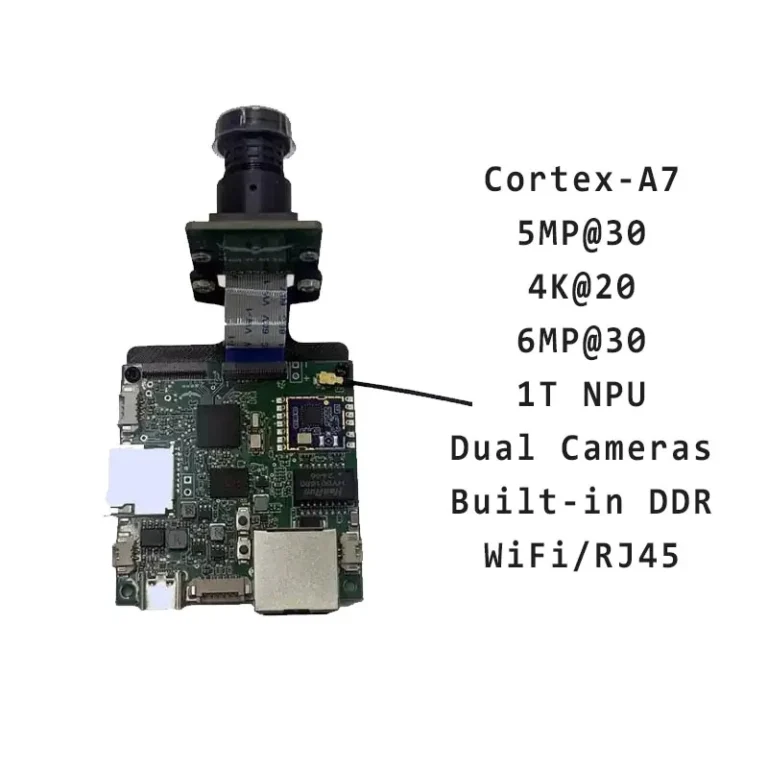

👉 Explore the Hi3516CV610 Edge AI IPC Board for Smart Vision — the ideal hardware platform powering this solution.

2. System Architecture

2.1 Data Flow

1. Command Transmission: Control commands are sent from the PC to the development board via ZeroMQ over USB or Ethernet.
2. Hardware Processing: The Hi3516’s IVE accelerator applies the updated ISP parameters at line rate.
3. Live Feedback: Processed frames are streamed back to the PC and displayed side-by-side with the original feed.

3. Core Components

4. Real-Time Tuning Workflow

1. Launch Tuner Service

   ./isp_tuner --mode live --sensor imx415


2. Adjust Parameters via API

   import hisi_isp
   # Example: Enable gamma correction
   hisi_isp.set_gamma(enable=1, curve_type=2, strength=0.7)


3. Observe Live Comparison
   • Left Pane: Original camera feed
   • Right Pane: ISP-adjusted feed with highlighted changes

5. Practical Parameter Table

6. Deployment to Production

1. Export Tuned Configuration

   ./isp_tuner --export isp_params.bin


2. Flash to Device

   flash_isp_config -d /dev/mtdblock3 -f isp_params.bin


3. Verify on Target

   HI_MPI_ISP_LoadConfig(0, "mtd:isp_params");


7. Tips and Best Practices

• Rapid View Switching: Use Ctrl + Mouse Wheel to zoom in/out or toggle overlays.
• Preset Management: Store up to 10 presets for quick parameter recall.
• Objective Assessment: Employ histograms and test charts under controlled lighting.

Warning: Dynamic tuning consumes ~15% of NPU resources. Avoid intense color matrix changes in low-light to prevent color shifts.

8. Conclusion

By integrating real-time ISP tuning capabilities, engineers can accelerate development cycles, validate imaging adjustments immediately, and ensure consistent quality across production units. Our solution provides the flexibility and performance required for cutting-edge vision applications.

For customized ISP tuning solutions tailored to your project, contact Gorzim’s expert team.
